PJB100S - Power Connection Single Entry

PJB100S - Power Connection Single Entry

$98.00
$98.00
Sale Sold out
Free Shipping on every order!

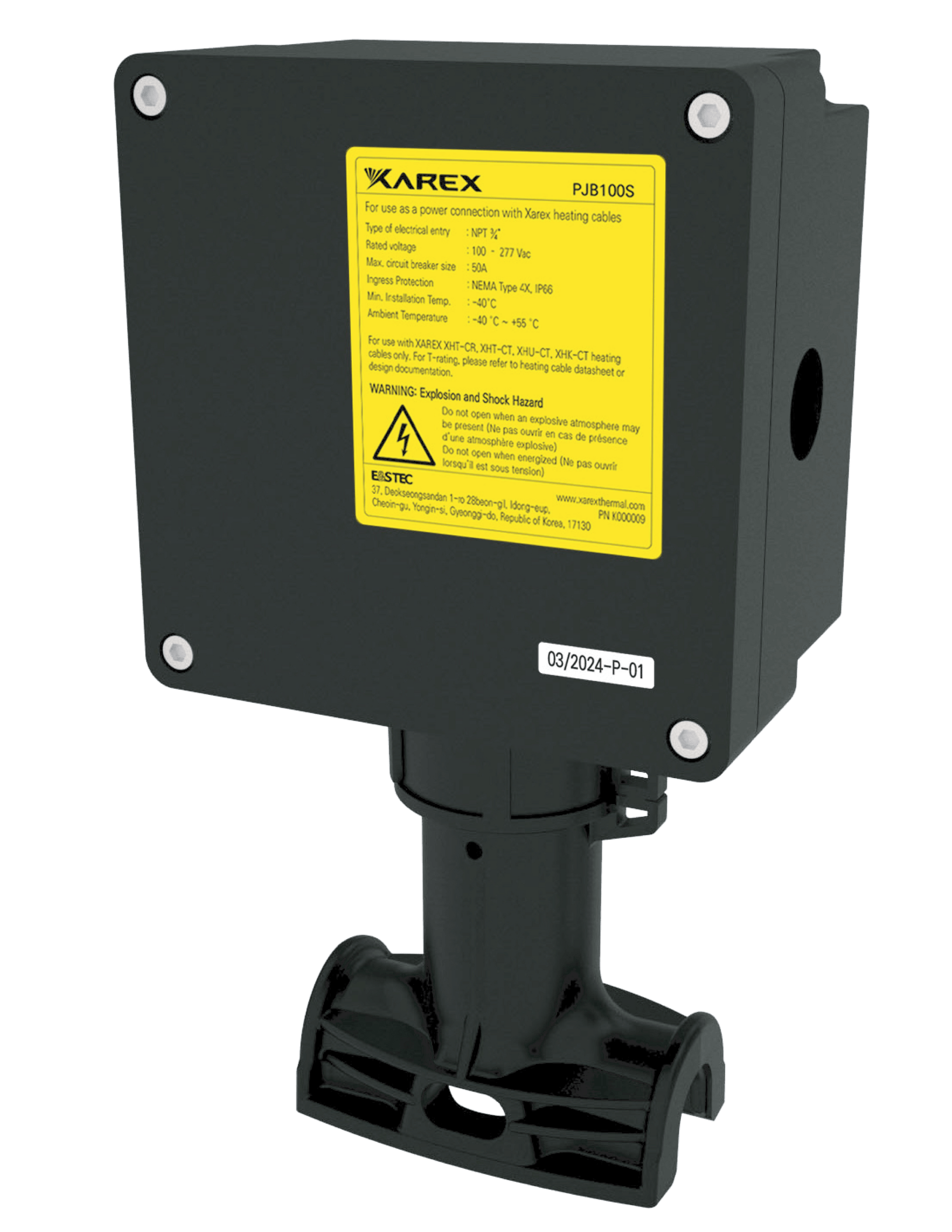

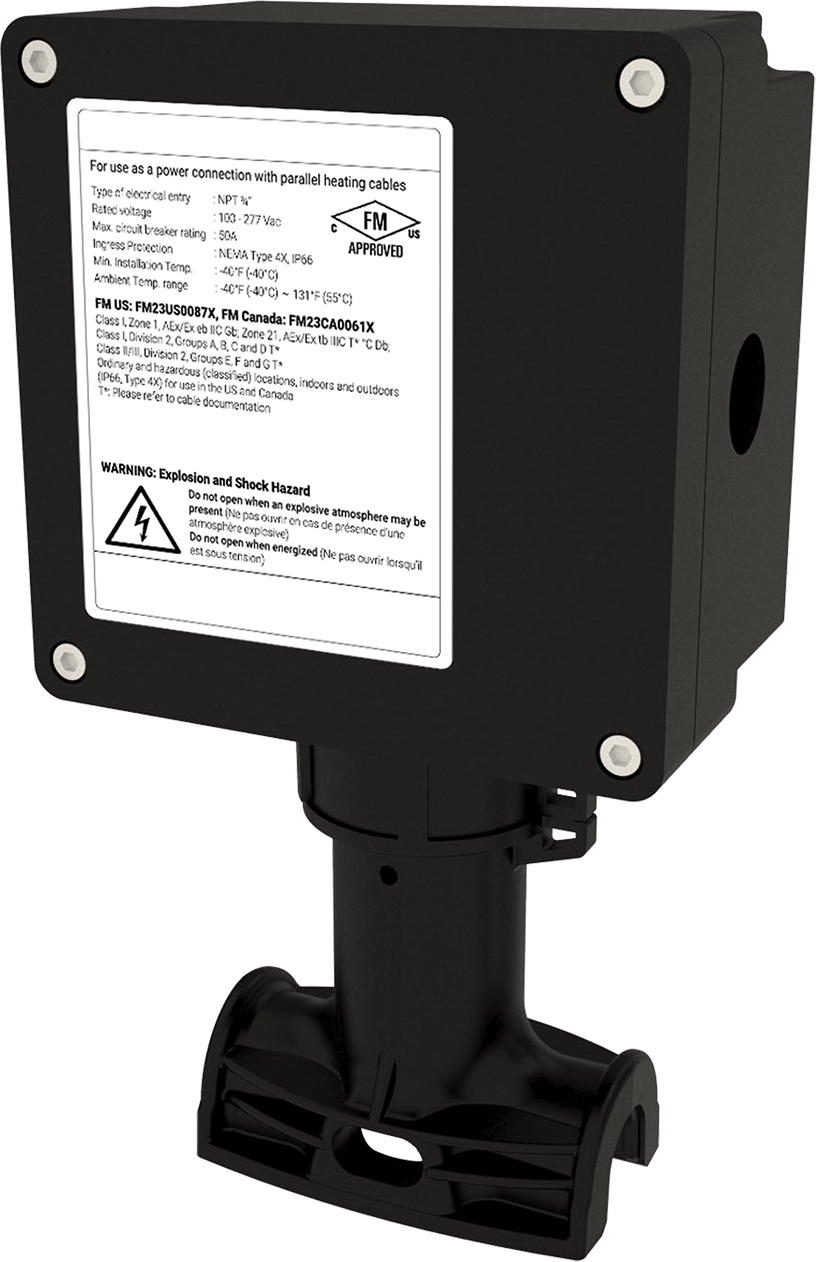

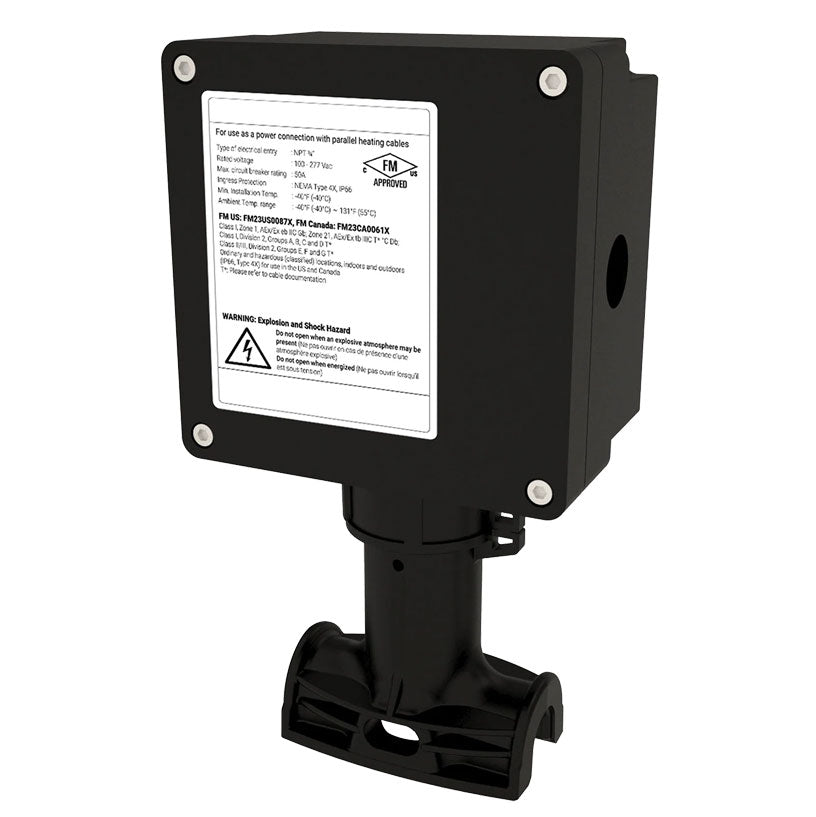

One PJB100S single entry power connection.

The PJB100S is designed to provide power connection to XHT, HTW industrial self-regulating heat trace cables.

Specifications

 Application Power Connection for Single Entry

Heating cable capability (No. of heating cable entry)

 XHT-CR, XHT-CT, HTW (One heating cable)
Supply voltage 100 ~ 277VAC
Ingress protection NEMA Type 4X, IP66
Ambient temperature range -40°F ~ 131°F
Minimum installation temperature

-40°F
Through hole for conduit NPT ¾”
Maximum conductor sizes  8AWG (Optional 6AWG)
Maximum circuit breaker size

50A


Material Information

Contents 1 junction box with terminal blocks
1 lid and 4 screws
1 pipe stand, compression cap, locknut and cable tie
3 grommets for different cable sizes
1 core sealer
1 insulation tube
1 RTV sealant
2 O-rings

Enclosure Material

 Glass reinforced polymer junction box
Glass reinforced polymer lid with stainless steel screws
Glass reinforced polymer box stand
Installation accessories (sold separately)

Conduit and fittings
Box plug
Pipe Strap
Fiberglass tape
Aluminum tape
Tools Required

Wire cutters, Utility knife, Marking pen
Large slotted screw drive
3/16"(or 5mm) hex key
Adjustable pliers, Needle nose pliers
