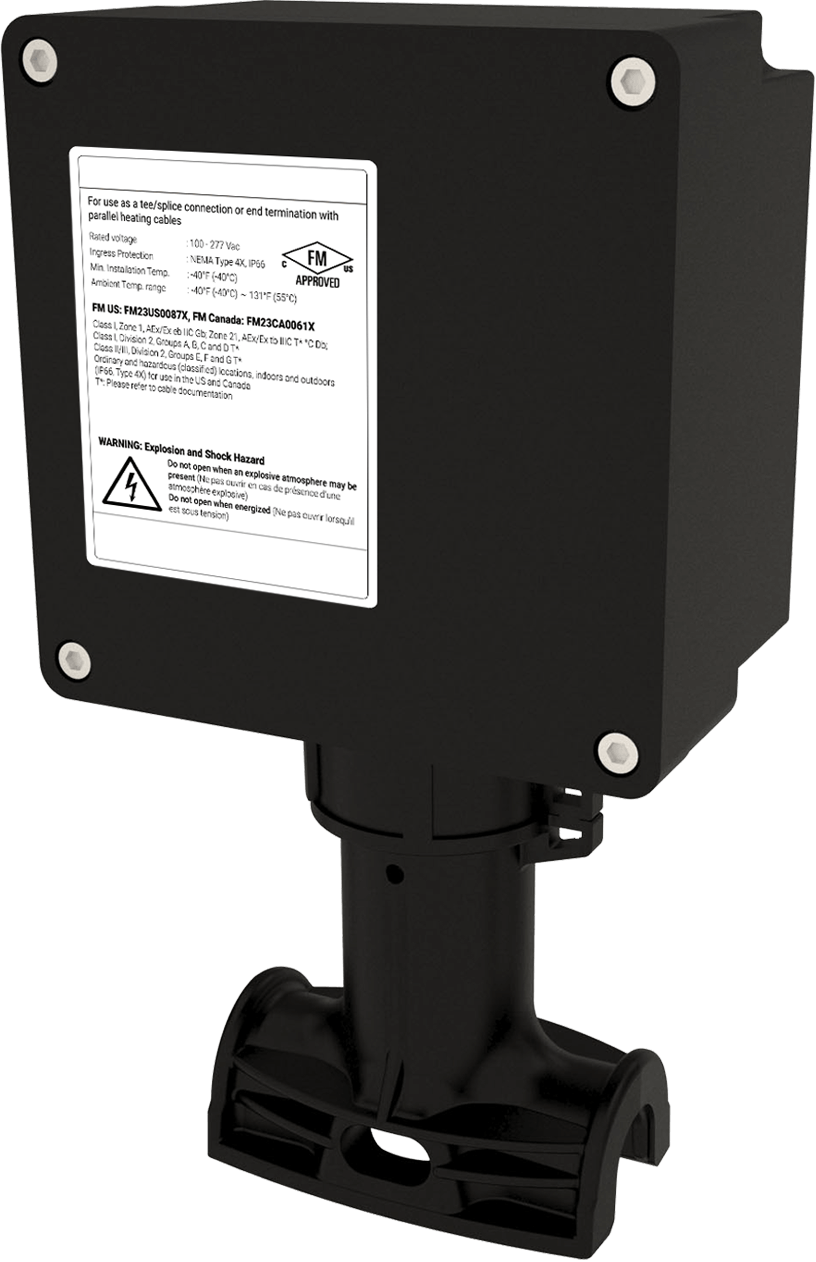

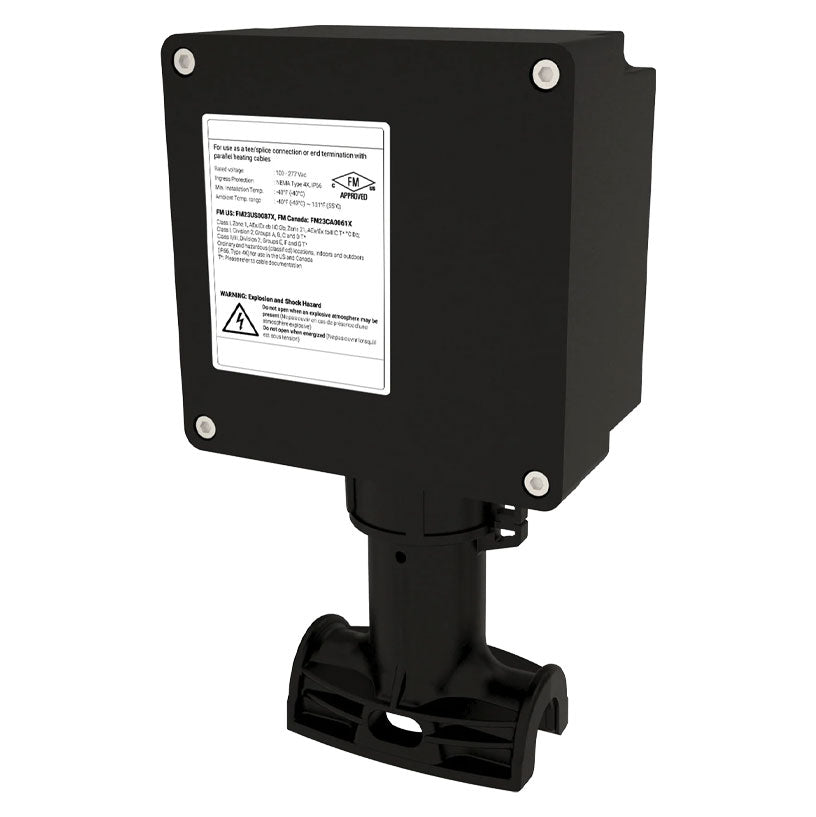

PJB200 - Splice or Tee Connection, End Termination

PJB200 - Splice or Tee Connection, End Termination

$138.00
$138.00
Sale Sold out
Free Shipping on every order!

One PJB200 splice or tee connection, end termination

The PJB200 is designed to provide power connections, tee or splice connections or end terminations for XHT, HTW industrial self-regulating heating cables.

Specifications

 Application Splice or tee connection, end termination

Heating cable capability
(No. of heating cable entry)

 XHT-CR, XHT-CT, HTW
(up to three heating cables)
Ambient temperature range -40°F ~ 131°F
Minimum installation temperature

-40°F
Maximum operating voltage 100 ~ 277 V
Ingress protection NEMA type 4X, IP66
Through hole for conduit NPT ¾"
Maximum conductor sizes  8AWG (Optional 6AWG)
Maximum circuit breaker size

50A


Material Information

Contents

1 junction box with terminal blocks
1 lid and 4 screws
1 pipe stand, compression cap, locknut and cable tie
3 grommets for different cable sizes
3 core sealer
3 insulation tube
1 RTV sealant
2 grommet plugs
2 O-rings
1 wrench

Enclosure Material

 Glass reinforced polymer junction box
Glass reinforced polymer lid with stainless steel screws
Glass reinforced polymer box stand
Installation accessories (sold separately)

Certified box plug with locknut
Pipe Strap
Fiberglass tape
Aluminum tape
Tools Required

Wire cutters, Utility knife, Marking pen
Large slotted screw drive
3/16"(or 5mm) hex key
Adjustable pliers, Needle nose pliers
