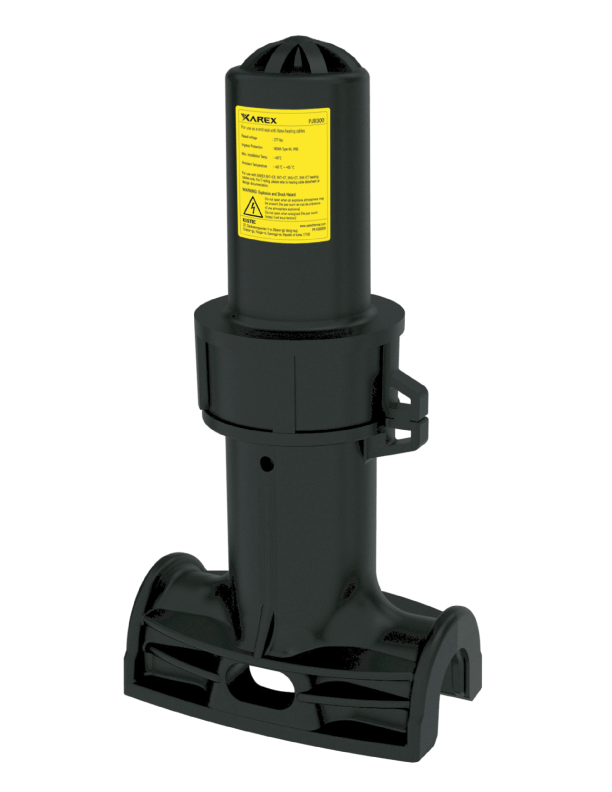

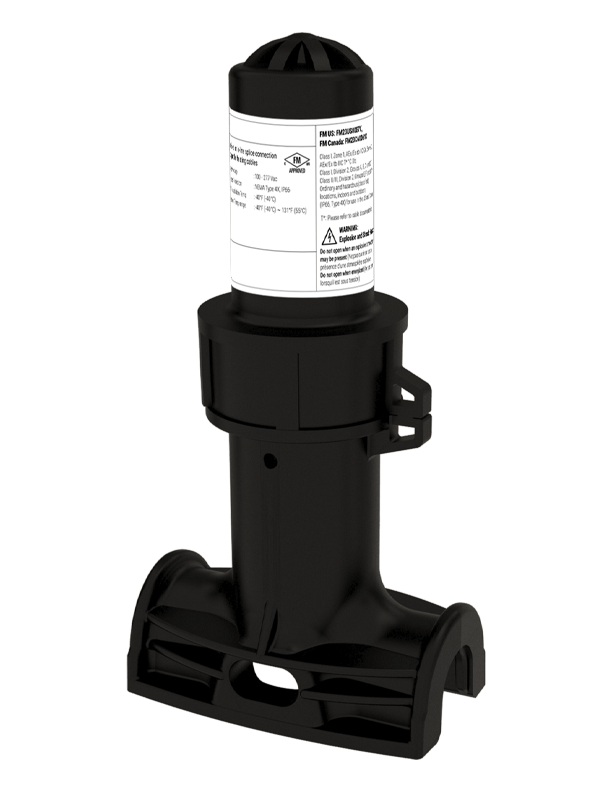

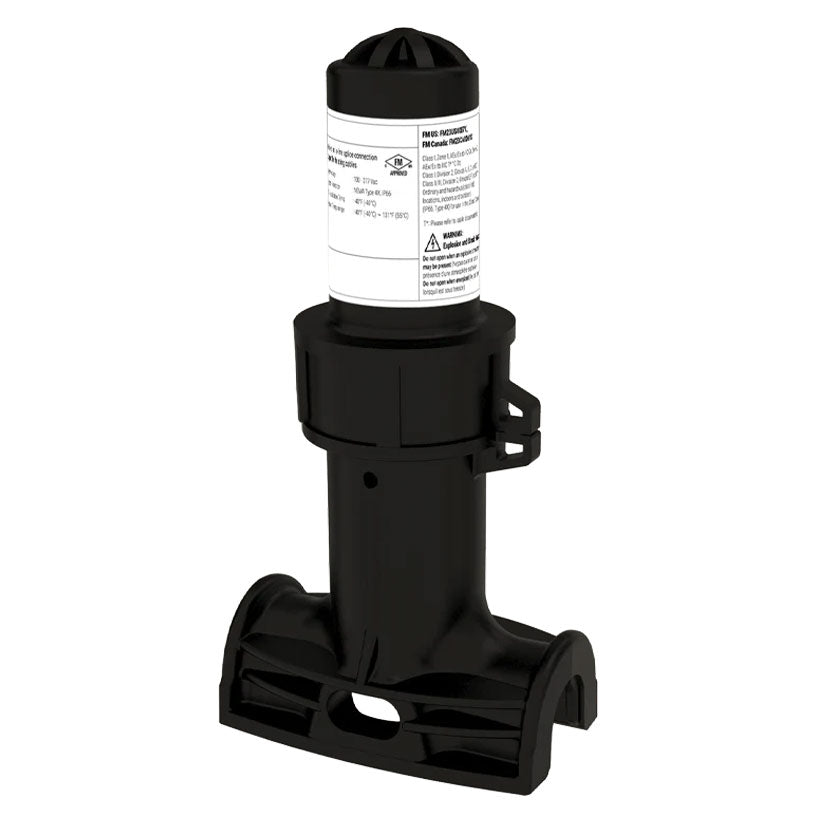

PJB300 - End Seal or In-Line Splice

PJB300 - End Seal or In-Line Splice

$78.00
$78.00
Sale Sold out
Free Shipping on every order!

One PJB300 end seal or in-line splice

The PJB300 End Seal is designed to terminate XHT, HTW industrial self-regulating heating cables for up to two heating cables

Specifications

 Application End seal/in-line splice connection

Heating cable capability
(No. of heating cable entry)

 XHT-CR, XHT-CT, HTW
(up to two heating cables)
Ambient temperature range -40°F ~ 131°F
Minimum installation temperature

-40°F
Maximum operating voltage 100 ~ 277 V
Ingress protection NEMA type 4X, IP66


Material Information

Contents

1 end cap
1 pipe stand and cable tie
3 grommets for different cable sizes
2 end seal tubes for different cable size
1 RTV sealant
1 O-rings
1 wrench

Enclosure Material

 Glass reinforced polymer end cap
Glass reinforced polymer box stand
Installation accessories (sold separately)

Certified box plug with locknut
Pipe Strap
Fiberglass tape
Aluminum tape
Tools Required

Wire cutters, Utility knife, Marking pen
Adjustable pliers, Needle nose pliers

(For in-line splice only)
Molex RHT-7000 crimp tool or equivalent: 10-16AWG slot
